Veratek Self-Crimp Fittings – Kitec Plumbing Repair

Veratek Self-Crimp Fittings are designed to be self-crimped onto the Kitec pipe without the need of clamp rings. Crimping the aluminum sheath inside the Kitec plumbing pipe makes a leak-free seal around the Veratek fitting. The new Veratek replacement fittings (Kitec replacement fitting) are manufactured from high-grade aircraft aluminum (6061-T6) and are made in Canada.  Veratek replacement fittings are a made for Kitec plumbing repair and failed Kitec fittings. Kitec plumbing failures have been linked to a metallurgy effect of fittings and clamps. Kitec and Kitec plumbing pipe fittings were used extensively throughout North America from 1995 to 2007.

Veratek Self-Crimp Fittings

The Veratek end conversions allow the user to fit up into standard NPT male or female, along with hose barb and PEX conversion ends to convert a variety of Kitec plumbing repair products and applications. Therefore, with these choices, the opportunities to change the plumbing application, or make a kitec plumbing repair can be done with a leak-free seal. Furthermore, the fitting design, and wall thickness has taken into account flow restriction, and in most plumbing applications the flow is greater than the originally installed product product.

Visual Seal-Tight Confidence by Veratek

Veratek Self-Crimp Fittings simplify the inspection process of newly installed fittings, with the indentation in the actual pipe tubing. This visual cue that the fittings are secured is your seal-tight confidence and backed up with the double o-ring and four point shoulder contact. Your Kitec plumbing repair will be leak-free and due to our unique Kitec transition fittings.

kitec pipe crimp
kitec compression fitting
  • Fitting corrosion is a concern when joining dissimilar metals together. The Veratek fittings are made from aluminum to be compatible with the aluminum sheath inside the Kitec pipe. Joining Pex pipe or hose pipe to a Veratek fitting is totally acceptable. If you require a Veratek fitting to have a male or female pipe thread on the end, it should never be joined with fittings made from materials such as brass, Stainless Steel or galvanized metal. If these are used galvanic corrosion will occur. Common acceptable fittings for the Veratek pipe thread ends would be (CPVC = Chlorinated Polyvinylchloride) (PE = Polyethylene) (Nylon)
  • Always use a non-petroleum based lubricant when installing a Veratek Fitting to ensure the O-rings do not roll when inserting the fitting into the pipe. Plumbers grease or petroleum based lubricates can harm the O-ring.
  • Ensure the inside surface of the Kitec pipe has not been damaged or gouged when the old fitting was removed. Veratek Self-Crimp Fittings seal by O-ring contact on damage free surfaces so cutting the pipe back may be required to achieve this.

Applications and Conversions

Veratek Self-Crimp Fittings are produced in four separate end conversion to help in your Kitec plumbing repair. These kitec replacement fittings can be used on hot and cold water lines and with the four unique end conversions allow the user to fit up in standard NPT male or female, along with hose barb and PEX conversion ends. With these choices it allows plumbers or home owners the opportunity to convert to a variety of plumbing products or change the plumbing application with leak-free, seal-tight confidence. The fitting design, and wall thickness has taken into account flow restrictions, and in most applications the flow is greater than the originally installed plumbing products. In addition, Veratek’s kitec plumbing fittings are also available in four pipe sizes of 1/2″, 5/8″, 3/4″ and 1″.

Typical Kitec Piping was used in the floor heating industry, and with this Kitec replacement fitting it allows the smooth transition into aluminum couplers to attach to manifolds and wall mounted radiators. With the glycol/water solutions used in these systems the aluminum fittings resist corrosion and work to transfer the heat through uniformly. Many uses of Kitec plumbing pipe exist, from underground sprinkler systems, home water lines, to ground source cooling coils, but whatever your use or application was, Veratek has a conversion fitting.

Installation is fast, efficient, and will save thousands of dollars to convert plumbing systems that are already in place.

kitec plumbing repair

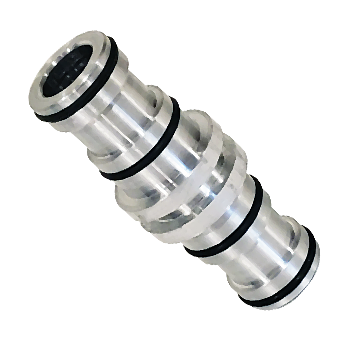

Kitec

kitec plumbing repair

Hose

kitec plumbing repair

PEX

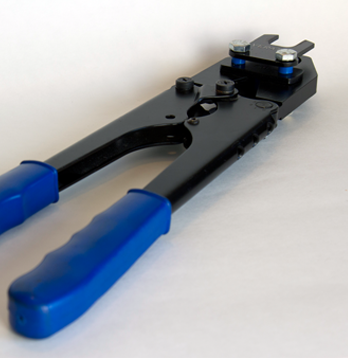

Crimping Tool

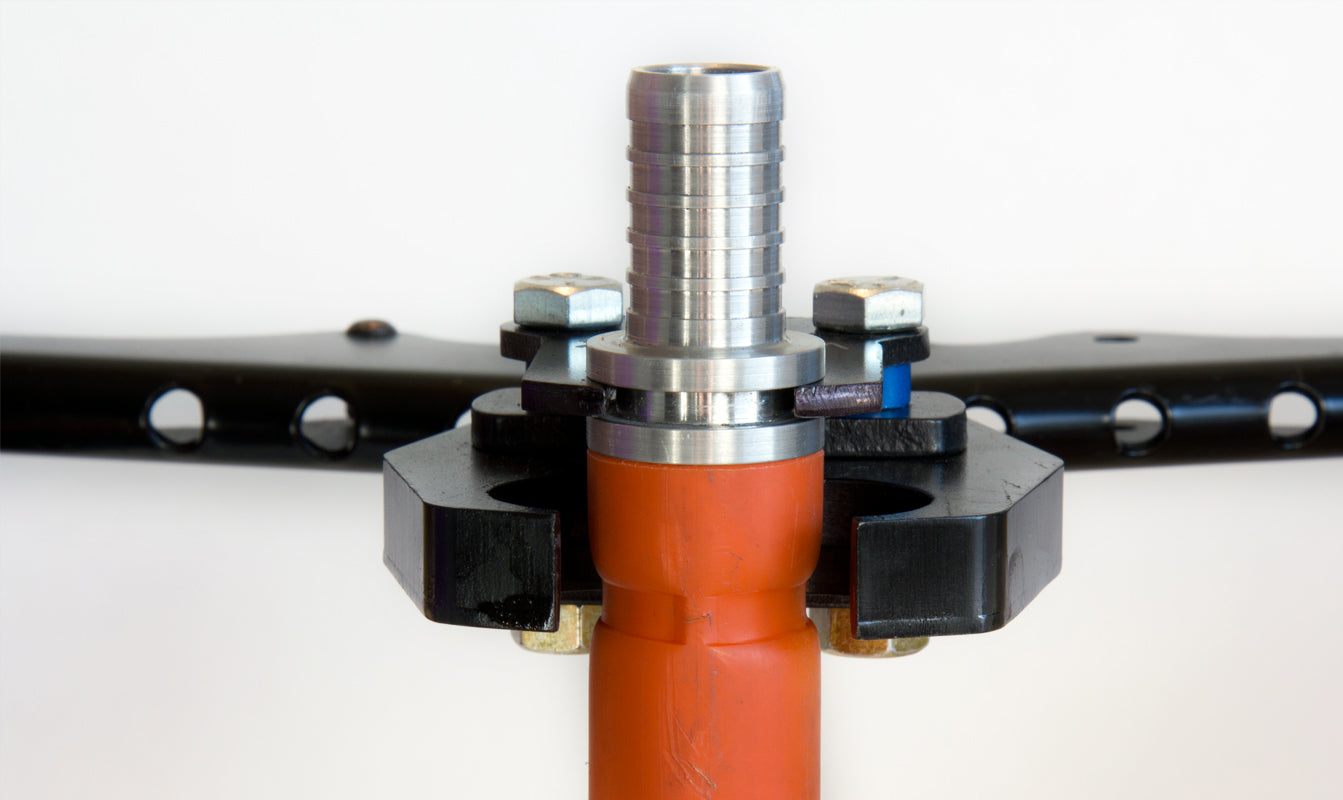

Installation is fast and accurate. This unique tool gives you seal tight confidence by controlling 3 crucial variables.

1. A location collar (datum) on the crimping tool positions the fitting to the tool consistently each and every time, means consistent application.
2. The tool is also designed to control crimp pressure with a dead stop that prevents over crimp fractures.
3. Once the Veratek fitting is crimped, visual inspection is simplified by seeing the tube indentation.

SHOP NOW

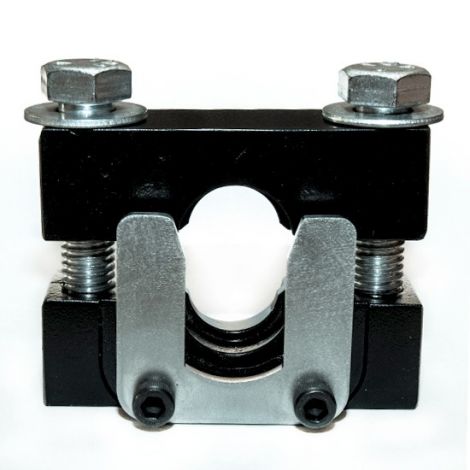

Veratek crimping tool

Veratek Self-Crimp Fittings

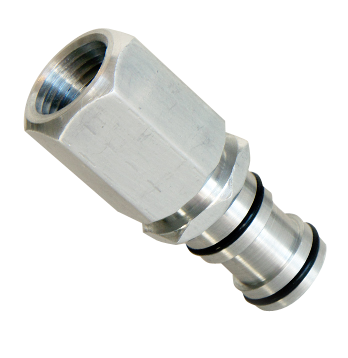

Female NPT

Veratek Self-Crimp Fittings

Available in standard pipe sizes of 1/2″, 5/8″,3/4″, and 1″
NOTE:
1/2″ Kitec (Inside Diameter) = 3/8″ NPT (National Pipe Thread)
5/8″ Kitec (Inside Diameter) = 1/2″ NPT (National Pipe Thread)
3/4″ Kitec (Inside Diameter) = 1/2″ NPT (National Pipe Thread)
1″ Kitec (Inside Diameter) = 3/4″ NPT  (National Pipe Thread)

SHOP NOW

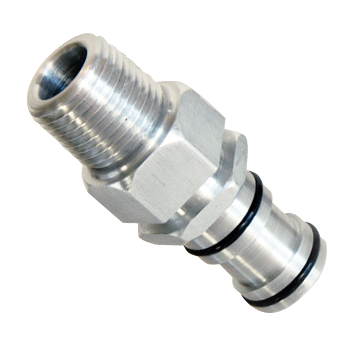

Male NPT

Veratek Self-Crimp Fittings

Available in standard pipe sizes of 1/2″, 5/8″,3/4″, and 1″
NOTE:
1/2″ Kitec (Inside Diameter) = 3/8″ NPT (National Pipe Thread)
5/8″ Kitec (Inside Diameter) = 1/2″ NPT (National Pipe Thread)
3/4″ Kitec (Inside Diameter) = 1/2″ NPT (National Pipe Thread)
1″ Kitec (Inside Diameter) = 3/4″ NPT  (National Pipe Thread)

SHOP NOW

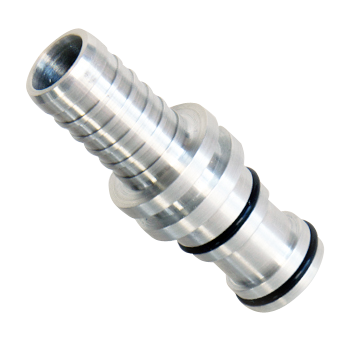

Barb Type Fitting

Veratek Self-Crimp Fittings

Available in standard pipe sizes of 1/2″, 5/8″,3/4″, and 1″
NOTE:
1/2″ Kitec (Inside Diameter) = 1/2″ Barb (Inside Diameter)
5/8″ Kitec (Inside Diameter) = 3/4″ Barb (Inside Diameter)
3/4″ Kitec (Inside Diameter) = 3/4″ Barb (Inside Diameter)
1″ Kitec (Inside Diameter) = 1″ Barb (Inside Diameter)

SHOP NOW

PEX Type Fitting

Veratek Self-Crimp Fittings

Available in standard pipe sizes of 1/2″, 5/8″,3/4″, and 1″
NOTE:
1/2″ Kitec (Inside Diameter) = 1/2″ Pex (Inside Diameter)
5/8″ Kitec (Inside Diameter) = 3/4″ Pex (Inside Diameter)
3/4″ Kitec (Inside Diameter) = 3/4″ Pex (Inside Diameter)
1″ Kitec (Inside Diameter) = 1″ Pex (Inside Diameter)

SHOP NOW

Kitec Plumbing Repair

If you have a kitec plumbing system in your home or business with a brand of plastic pipes called “KITEC”, then please watch this video.
